BYS11-38-01T
Belongs to category: Special product
DC 12V
DC 24V
Features:
- Suitable for electromagnetic multi-way valves
- Comes with return spring

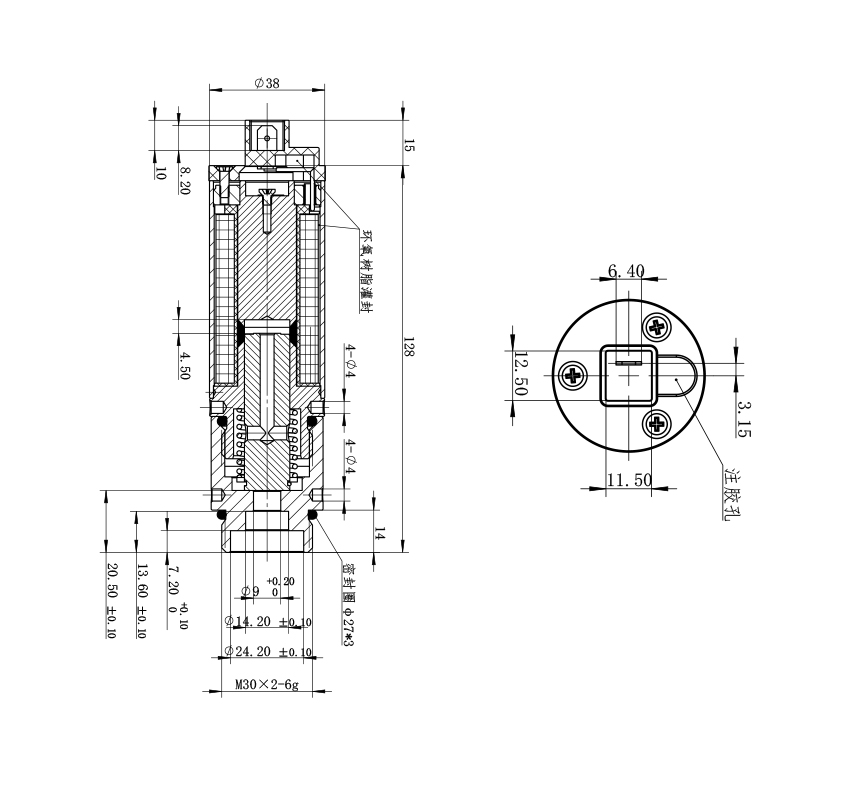

Outline and connection dimensions:
|
technical parameter |
||
|
Ambient temperature |
℃ |
-25~50 |
|
Voltage fluctuation range |
% |
85～110 |
|
Rated power |
W |
56.3 |
|
Rated stroke |
mm |
4.5 |
|
Full stroke |
mm |
≥ 4.5 |
|
Working oil pressure |
Mpa |
≤ 30 |
|
Degree of protection |
IP54 |
|
|
Operating frequency |
T/h |
12000 |
|
Power on duration |
% |
100 |
|
Insulation class |
H(180) |
|
|
Electrical connection mode |
DT04-2P |
|
F-S characteristic curve:
The sample data comes from the laboratory environment and is only for reference. If your company needs the latest data or has special needs, please contact Boye hydraulic engineer.
