BYZ04-25-01D
Belongs to category: Solenoid for DC wet valve
DC 12V
DC 24V
Features:
- Applicable to hydraulic solenoid directional valve
- With threaded connection, the coil can be replaced without shutdown
- Equipped with manual emergency device
- Coil inner hole φ25
Outline and connection dimensions:
| technical parameter | ||
|
Ambient temperature |
℃ | -25~50 |
|
Voltage fluctuation range |
% | 85～110 |
|
Rated power |
W | 40 |
|
Rated stroke |
mm | 3 |
|
Full stroke |
mm | ≥6.8 |
|
Working oil pressure |
Mpa | ≤21 |
|
Degree of protection |
IP67 | |
|
Operating frequency |
T/h | 12000 |
|
Power on duration |
% | 100 |
|
Insulation class |
H(180) | |
|
Electrical connection mode |
DT04-2P | |
Matters needing attention:
1. The coil shall not be powered on alone, which has the risk of burning!
2. Non explosion-proof coil shall not be used in medium with explosion risk!
3. After the coil is installed, it must be grounded reliably, otherwise there is a risk of electric shock！

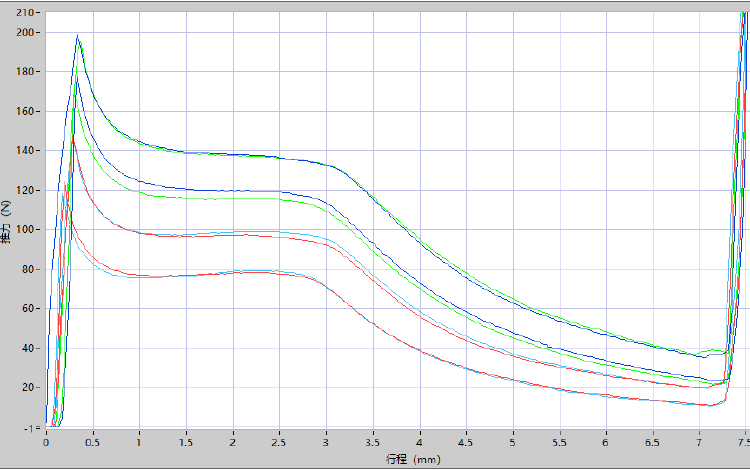

F-S characteristic curve:
The sample data comes from the laboratory environment and is only for reference. If your company needs the latest data or has special needs, please contact Boye hydraulic engineer.
