BYG15-37-01MD
Belongs to category: Electromagnet for proportional valve
DC 12V 1.2A
DC 24V 0.6A
Features:
- Suitable for FCV85 Series electro-hydraulic proportional lift valve for forklift
- Threaded connection, coil can be replaced without stopping
- Equipped with manual adjustment device
- Coil inner hole φ19, full plastic sealing process
Outline and connection dimensions:
|
technical parameter |
|||
|
Ambient temperature |
℃ |
-25~50 |
|
|
Rated voltage |
VDC |
12 |
24 |
|
Rated current |
A |
1.2 |
0.6 |
|
Maximum current |
A |
1.6 |
0.85 |
|
Rated resistance |
Ω |
4.80 |
18 |
|
Rated stroke |
mm |
3 |
|
|
Full stroke |
mm |
5 |
|
|
Rated thrust |
N |
32 |
|
|
Force hysteresis |
% |
≤4 |
|
|
Current hysteresis |
% |
≤4 |
|
|
Repetition accuracy |
% |
≤1 |
|
|
Working oil pressure |
MPa |
≤35 |
|
|
Degree of protection |
IP67 |
||
|
Power on duration |
% |
100 |
|
|
Insulation class |
H（180） |
||
|
Electrical connection mode |
DT04-2P |
||
Matters needing attention:
1. After tie first use or long-term shutdown, please exhaust the air in the system first!
2. It can be installed in any direction, and it is recommended to install horizontally.

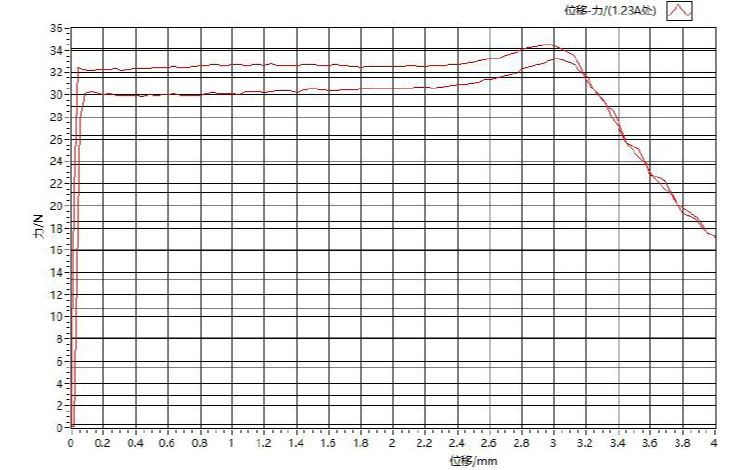

F-S characteristic curve:
The sample data comes from the laboratory environment and is only for reference. If your company needs the latest data or has special needs, please contact Boye hydraulic engineer.
